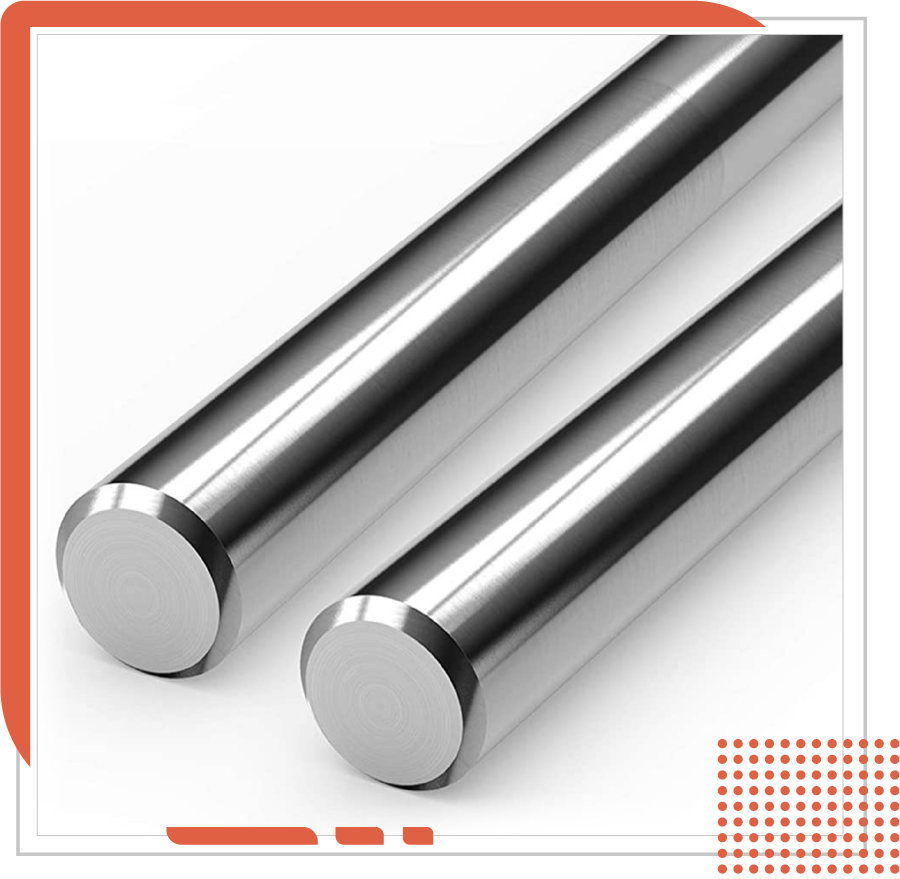

Hydraulic Piston Rods
Hard Chrome Plated Shafts (Hard Chrome Plated Bars) and hardened hard-plated chrome bars are designed to meet your specific needs for piston rod material in Hydraulic and Pneumatic Cylinders and other applications. Most advanced techniques of surface removal, polishing, and hard chrome plating are used in manufacturing the above bars.
Hydraulic Piston Rods Built with precision and durability in mind, these rods are perfect for a wide range of industrial and hydraulic systems.
| Material | EN-8 D/CK45 standard available EN-8 / EN-19 / EN-31/ other as per requirement. |
| Standard Size | 6mm to 3000mm |
| Standard Length | 3mtr-7mtr (Can provide cut lengths as per request) |
| Hard Chrome Plating Thickness | 0 < 20 mm : min.40 micron 0 20 mm : min. 20 Micron |
| Surface Roughness | better than RA-0.2. |
| Chrome Surface Hardness | Min. 800 HV |
| Straightness | 0 16 mm : max. 0.3 mm / 1000 mm 0>16mm:max.0.2mm/1000mm |
| Od Tolerance | f7 / f8/ |
- High Strength Material: Manufactured from top-grade steel for maximum strength and durability.
- Corrosion Resistance: Advanced surface treatment to resist rust and wear, ensuring long-lasting performance.
- Precision Finish: Superior surface smoothness for enhanced sealing and reduced friction.
- Customizable Options: Available in various lengths, diameters, and finishes to suit your specific needs.
- Hydraulic cylinders
- Construction machinery
- Agricultural equipment
- Material handling systems
- Industrial machinery
- Unmatched Quality: Strict quality control ensures each piston rod meets industry standards.
- Competitive Pricing: High-quality products at cost-effective rates.
- Expert Support: Dedicated team for technical assistance and after-sales service.
