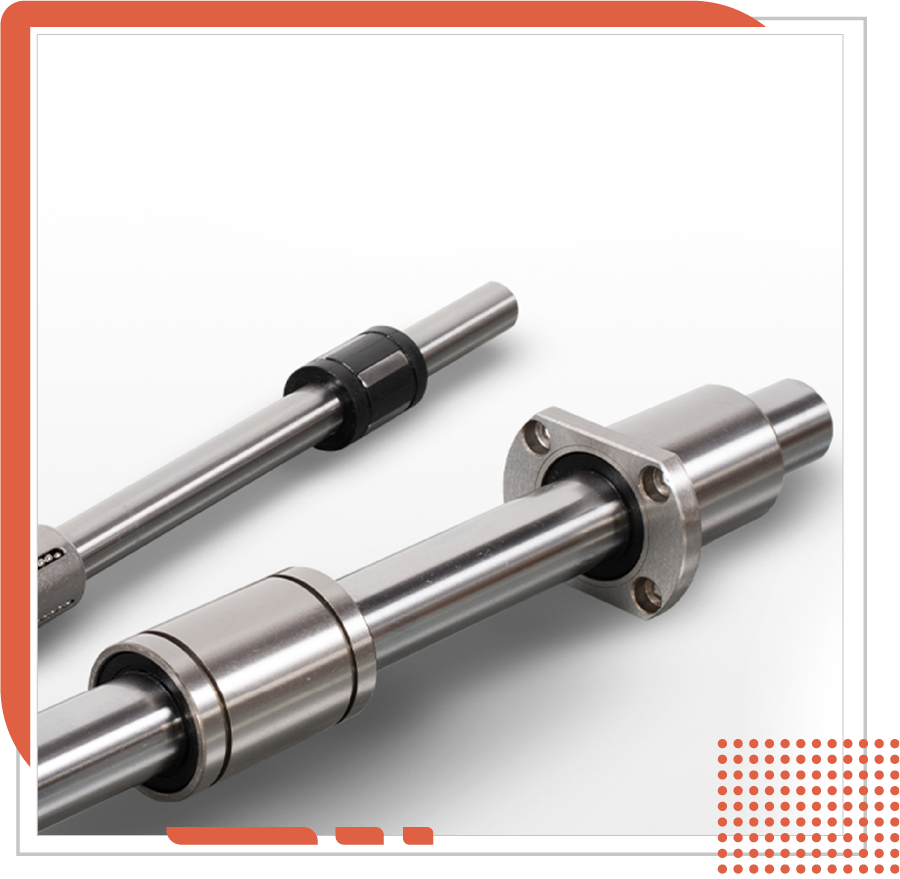

Induction Harden Rod
We pride ourselves on the quality of our products, which go through a highly specific production process. Each Chrome Plated Rod we ship has been inspected to meet current industry standards for tolerances.
Induction Hardened Chrome Plated Steel Bars are produced by using advanced techniques on AISI 1045/1050 steel bars, for surface removal, polishing, induction hardening, and then hard chrome plating. The finished product is a superior impact-resistant bar ideal for high-quality piston rods.
- Made From Aisi 1045 / 1050 Steel
- Meets Astm A108, A311 Class B, A434 Class Bc/bd
- Metric Sizes Available
- Hardness Of Chrome Plating Hrc 67-72
- IHCP Surface Hardness Of HRC 50 Minimum
- Minimum Hardness Depth At 0.050"
- Stocked In Lengths 12’ – 24’
- Cut to Length Sizes Available
- Stocked Hard Chrome Plated Thickness Per Side: Min .0005”(.0127mm), .001” (.0254mm), .002" (.0508mm)
- Surface Finish Of 16 Ra Maximum
- Custom Sizes And Chrome Thickness Available.
- Salt Spray Test To 48 Hours In Accordance With Astm B-117
| Material Grade | EN8-D, Ck45 standard available (EN-8/EN-19 /EN-31/Others as per request) |
| Standard Size | Ø6 – 300 mm |
| Diameter tolerance | ISO f7/18 (other on request) |
| Roundness | Max. 1/2 from diameter tolerance |
| Standard Length | 3 mtr – 7 mtr (On request cut lengths and special lengths) |
| Surface Roughness | Ra : Max. 0.20 sµn |
| Hardness Case Depth | 1.5 mm to 2.5 mm |
| Chrome Layer Thickness | Ø < 20 mm : min. 15 µm Ø ≥ 20 mm : min. 20 µm |
| Surface hardness | Min. 800HV |
| Straightness | Ø ≤ 16mm : Max. 0.3 mm/1000 mm Ø > 16 mm : Max. 0.2 mm/1000 mm |
| Hardness | 58±2HRC |
- High Surface Hardness: Ensures resistance to wear, abrasion, and impact.
- Durability: Maintains structural integrity under high stress and heavy loads.
- Corrosion Resistance: Often plated (e.g., chrome) for enhanced protection against corrosion.
- Precision Machining: Available with tight tolerances for precise applications.
- Hydraulic cylinders and systems.
- Pneumatic applications.
- Heavy machinery and construction equipment.
- Automotive components.
- Longer lifespan compared to non-hardened rods.
- Improved performance in demanding environments.
- Cost-effective due to reduced maintenance and replacement needs.
